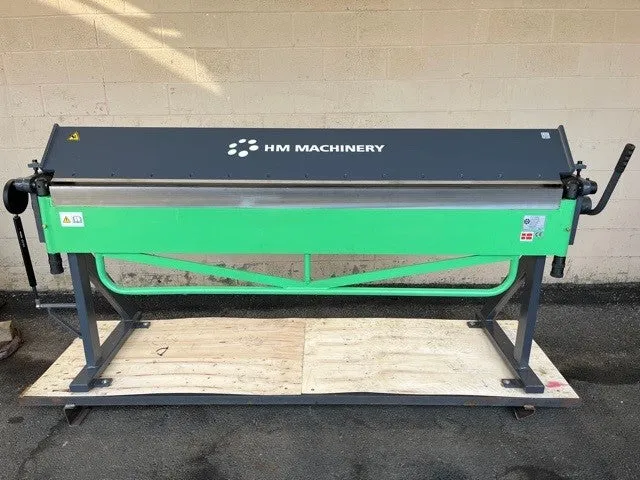

New HM MB 2000L, 20ga x 6ft (79″) Straight Brake (Angled Nose Bar)

The HM Machinery 2000L Straight Brake is a durable, large-scale manual brake designed to produce consistent high quality bends up to 79″ wide in high-production environments.

Precision ground tooling on the single piece angled nose bar, combined with cross-driven clamping and a repeat angle stop, enable repeatable and accurate bends.

A full-width apron handle and piston-assisted opening and closing make the 2000L easy to operate, even when working with large sheets of material.

Features and Benefits:

• Precision ground tooling on the angled nose bar creates straight, clean bends every time.
• Cross-driven clamping allows easy consistent material positioning.
• Repeat angle stop enables easily repeatable bends.
• Full length apron lift handles are ergonomically designed to allow easy operation, even with large sheets of material.

Specifications:

• Maximum Bend Length: 79”
• Maximum Material Capacity: 20-Gauge Mild Steel
• Maximum Opening: 1.5”
• Maximum Folding Angle: 135 Degrees
• Approx. Shipping Dimensions: 92” x 29” x 44”
• Approx. Shipping Weight: 1050lbs.
